SUV/4X4

ADVENTURO AT3

  • Rim Sizes 15-20
  • Speed Rating R-H
  • TQG 520 B
  • Aspect Ratio 50-85
  • Section Width 205-285
Download Product Leaflet

AN ALL-TERRAIN TIRE DESIGNED FOR LIGHT TRUCK AND SUV DRIVERS WANTING AGGRESSIVE LOOKS WITH RELIABLE ON-ROAD DRIVING. THE ADVENTURO AT3 PROVIDES EXCELLENT HANDLING AND WET GRIP, WITH A COMFORTABLE ON-ROAD RIDE, AND SUPERB OFF-ROAD CAPABILITY.

  • Rim Sizes 15-20
  • Speed Rating R-H
  • TQG 520 B
  • Aspect Ratio 50-85
  • Section Width 205-285
Download Product Leaflet

AN ALL-TERRAIN TIRE DESIGNED FOR LIGHT TRUCK AND SUV DRIVERS WANTING AGGRESSIVE LOOKS WITH RELIABLE ON-ROAD DRIVING. THE ADVENTURO AT3 PROVIDES EXCELLENT HANDLING AND WET GRIP, WITH A COMFORTABLE ON-ROAD RIDE, AND SUPERB OFF-ROAD CAPABILITY.

FEATURES AND BENEFITS

  • 1
  • 2
  • 3
  • 4
  • 5

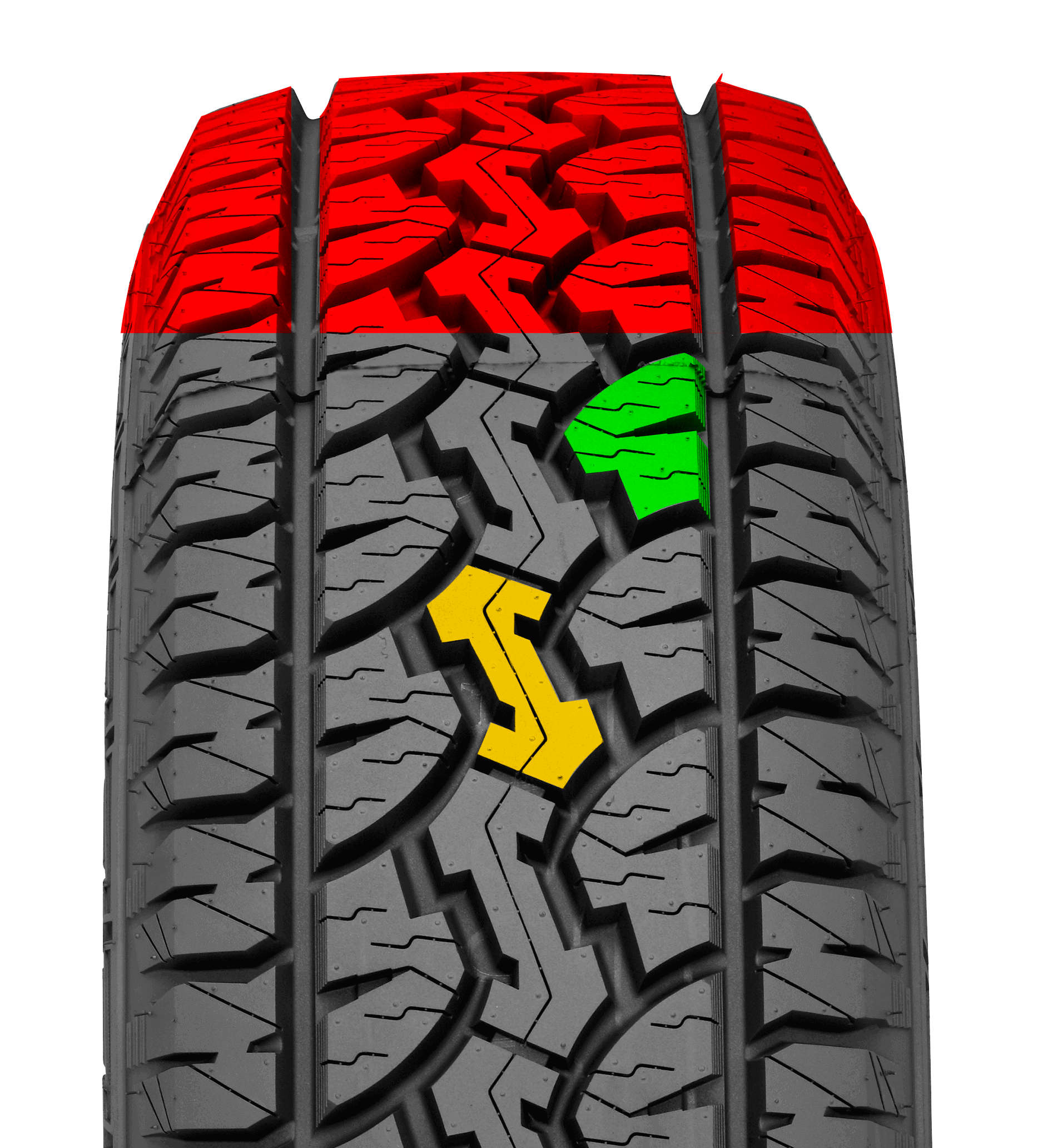

feature-ADVENTURO AT3
  • 1

    Enhanced tread compound
    Provides excellent wet and dry grip, longer tread life, and cut/chip resistance

  • 2

    Interlocked tread blocks and S-shaped central rib
    Delivers excellent handling stability and improved grip on soft or loose surfaces

  • 3

    3D grooves with chamfered edges
    Results in self-cleaning tread design for consistent off-road performance while reducing stone holding/drilling

  • 4

    Five-Pitch pattern technology
    Helps reduce road noise for a quieter, more comfortable ride

  • 5

    Rim protector
    Protects wheel from curb damage

SIZE RANGE

Tire
Size
LI SI ETRTO Standard
RIM
Section
Width
(mm)
Overall
Diameter
(mm)
Tread
Depth
(mm)
Max
Load
(kg)
267/76R15 109 S 8.5 7.0 ~ 9.0 267 775 12.6 1030
235/75R15 105 S 6.5 6.0 ~ 8.0 235 733 10.7 920
235/75R15 105 S 6 1/2J 6J;6 1/2J;7J;7 1/2J;8J 235 733 10.6 920
205/70R15 96 T 6J 5J;5 1/2J;6 1/2J;7J 205 669 10.6 710
Tire
Size
LI SI ETRTO Standard
RIM
Section
Width
(mm)
Overall
Diameter
(mm)
Tread
Depth
(mm)
Max
Load
(kg)
215/85R16 115/112 S 6J 5 1/2J;6 1/2J;7J 215 772 12.6 1215/1120
215/85R16 115/112 S 6.0 5.5 ~ 7.0 215 772 12.6 1215/1120
235/85R16 120/116 S 6.5 6.0 ~ 7.5 235 806 12.6 1380/1260
235/85R16 120/116 S 6 1/2J 6J;7J;7 1/2J 235 806 12.6 1380/1260
225/75R16 115/112 S 6J 6 1/2J;7J 225 744 12.6 1215/1120
245/75R16 120/116 S 7J 6 1/2J;7 1/2J;8J 245 774 12.6 1380/1260
245/75R16 109 T 7J 6J;6 1/2J;7 1/2J;8J 245 774 10.6 1030
245/75R16 120/116 S 7.0 6.5 ~ 8.0 245 774 12.6 1380/1260
245/75R16 109 T 7.0 6.5 ~ 8.0 245 774 10.7 1030
265/75R16 123/120 S 7.5 7.0 ~ 8.0 265 804 12.6 1550/1400
265/75R16 112/109 S 7 1/2J 7J;8J 265 804 12.6 1120/1030
265/75R16 123/120 S 7 1/2J 7J;8J 265 804 12.6 1550/1400
285/75R16 126/123 R 8J 7 1/2J;8 1/2J;9J 285 834 12.6 1700/1550
285/75R16 126/123 R 8.0 7.5 ~ 9.0 285 834 12.6 1700/1550
235/70R16 104 T 7.0 6.0 ~ 8.0 235 736 10.7 900
235/70R16 104 T 7J 6J;6 1/2J;7 1/2J;8J 235 736 10.6 900
245/70R16 111 T 7J 6 1/2J;7 1/2J;8J 245 750 10.6 1090
255/70R16 111 T 7 1/2J 6 1/2J;7J;8J;8 1/2J 255 764 10.6 1090
265/70R16 111 T 8J 7J;7 1/2J;8 1/2J;9J 265 778 10.6 1090
265/70R16 111 T 8.0 7.0 ~ 9.0 265 778 10.7 1090
205/R16 110/108 S 6J 5 1/2J;6 1/2J 205 736 12.6 1060/1000
Tire
Size
LI SI ETRTO Standard
RIM
Section
Width
(mm)
Overall
Diameter
(mm)
Tread
Depth
(mm)
Max
Load
(kg)
235/80R17 120/117 S 6 1/2J 6J;7J;7 1/2J 235 808 12.6 1400/1285
235/80R17 120/117 S 6.5 6.0 ~ 7.5 235 808 12.6 1400/1285
235/75R17 108 S 6.5 6.0 ~ 8.0 235 784 10.7 1000
245/75R17 121/118 S 7.0 6.5 ~ 7.5 245 800 12.6 1450/1320
245/75R17 121/118 S 7J 6 1/2J;7 1/2J 245 800 12.6 1450/1320
245/70R17 119/116 S 7J 6 1/2J;7 1/2J;8J 245 776 12.6 1360/1250
245/70R17 119/116 S 7.0 6.5 ~ 8.0 245 776 12.6 1360/1250
245/70R17 108 T 7 6.5 ~ 8.0 245 776 10.7 1000
265/70R17 113 T 8.0 7.0 ~ 9.0 265 804 10.7 1150
265/70R17 121/118 S 8.0 7.0 ~ 8.5 265 804 12.6 1450/1320
265/70R17 121/118 S 8J 7J;7 1/2J;8 1/2J 265 804 12.6 1450/1320
265/70R17 113 T 8J 7J;7 1/2J;8 1/2J;9J 265 804 10.6 1150
275/70R17 114/110 R 8J 7J;7 1/2J;8 1/2J 275 818 12.6 1180/1060
285/70R17 121/118 S 8 1/2J 7 1/2J;8J;9J 285 832 12.6 1450/1320
285/70R17 121/118 S 8.5 7.5 ~ 9.0 285 832 12.6 1450/1320
285/70R17 117 T 8.5 7.5 ~ 9.5 285 832 10.7 1285
245/65R17 105 T 7.0 7.0 ~ 8.5 245 750 10.7 925
245/65R17 105 T 7J 7 1/2J;8J;8 1/2J 245 750 10.6 925
265/65R17 110 T 8J 7 1/2J;8 1/2J;9J;9 1/2J 265 776 10.6 1060
265/65R17 110 T 8 7.5 ~ 9.5 265 776 10.7 1060
Tire
Size
LI SI ETRTO Standard
RIM
Section
Width
(mm)
Overall
Diameter
(mm)
Tread
Depth
(mm)
Max
Load
(kg)
265/70R18 114 S 8.0 7.0 ~ 9.0 265 829 10.7 1180
265/70R18 124/121 S 8J 7J;7 1/2J;8 1/2J;9J 265 829 12.6 1600/1450
275/70R18 125/122 S 8.0 7.0 ~ 8.5 275 843 12.6 1650/1500
275/70R18 125/122 S 8J 7J;7 1/2J;8 1/2J 275 843 12.6 1650/1500
265/65R18 112 S 8J 7 1/2J;8 1/2J;9J;9 1/2J 265 801 10.6 1120
265/65R18 112 S 8.0 7.5 ~ 9.5 265 801 10.7 1120
275/65R18 114 T 8.0 7.5 ~ 9.5 275 815 10.7 1180
275/65R18 123/120 S 8.0 7.5 ~ 9.0 275 815 12.6 1550/1400
275/65R18 114 T 8J 7 1/2J;8 1/2J;9J;9 1/2J 275 815 10.6 1180
275/65R18 123/120 S 8J 7 1/2J;8 1/2J;9J 275 815 12.6 1550/1400
285/65R18 125/122 S 8 1/2J 8J;9J;9 1/2J;10J 285 827 12.6 1650/1500
285/65R18 125/122 S 8.5 8.0 ~ 10.0 285 827 12.6 1650/1500
265/60R18 109 T 8.0 7.5 ~ 9.5 265 775 10.7 1030
265/60R18 109 T 8J 7 1/2J;8 1/2J;9J;9 1/2J 265 775 10.6 1030
Tire
Size
LI SI ETRTO Standard
RIM
Section
Width
(mm)
Overall
Diameter
(mm)
Tread
Depth
(mm)
Max
Load
(kg)
265/60R20 121/118 S 8J 7 1/2J;8 1/2J;9J;9 1/2J 265 826 12.6 1450/1320
275/55R20 111 H 8.5 7.5 ~ 9.5 275 810 10.7 1090
275/55R20 111 H 8 1/2J 7 1/2J;8J;9J;9 1/2J 275 810 10.6 1090
265/50R20 111 T 8 1/2J 7 1/2J;8J;9J;9 1/2J 265 774 10.6 1090
265/50R20 106 T 8 1/2J 7 1/2J;8J;8 1/2J;9J;9 1/2J 265 774 10.6 950
